11 Run Stainless Steel Cable Kit

$60.00 + GST per metre

Easy to install stainless steel cables designed to fit between timber posts. (fittings for steel posts also available, POA)
3.2mm 316 grade stainless steel cables

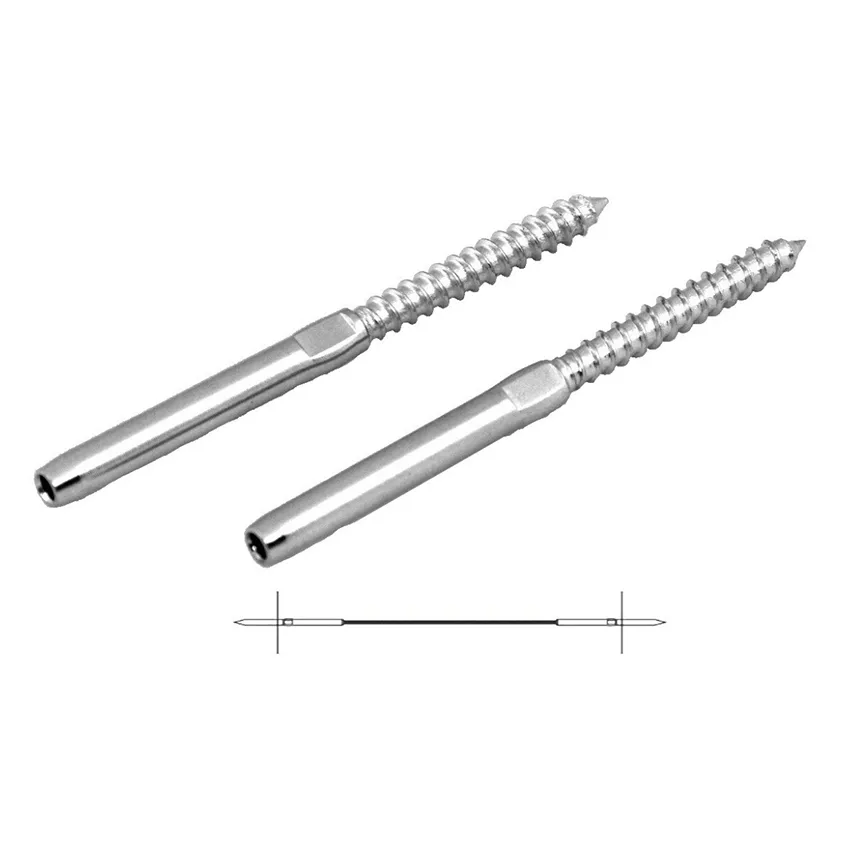

Left and right lag terminal fittings, 316 stainless steel
Fittings are hydraulically pressed on cables by us

- +
SKU: 002 Category:
Guaranteed Safe Checkout

Prices worked out at $60.00 + gst per metre.
Easy to install stainless steel cables designed to fit between timber posts. (fittings for steel posts also available, POA)
3.2mm 316 grade stainless steel cables
Left and right lag terminal fittings, 316 stainless steel
Fittings are hydraulically pressed on cables by us

eg; if you have a balustrade of 5.0m straight length between end posts the cost is $300 + gst (this includes the 11 runs required to fill the space to code).

NCC CODE REQUIREMENTS 3.9.2
Post centres to be no greater than 1.5m apart
• Cables running horizontally at 80mm centres
• For a 1.0m overall high balustrade we recommend 11 runs of cables
• The cables can run through mid posts, the fittings will pass through an 8.0m hole drilled by you.

Shopping Cart
Stair Tread Calculator
1
Total rise
1,600 mm
Bottom to top of where stair will be located (mm)1,600 mm

Measure from finished floor level at the bottom to finished floor level at the top.

2
Rise per tread
170 mm
Vertical height of each step (mm) — NCC: 150–190 mm170 mm

A rise of 170–180 mm is comfortable for most adults.

3
Depth of tread (going)
265 mm
Horizontal depth of each tread (mm) — NCC: 240–290 mm265 mm

A going of 250–280 mm suits most external stair applications.

4
Stair width
1,000 mm
Overall width of the staircase (mm)900 mm

Widths up to 1,000 mm are included in the standard online price.

Custom width — enquiry required
Your selected width of — exceeds 1,000 mm and cannot be purchased directly online. Continue through the configurator to complete your staircase selections — your order will be submitted as an enquiry and our team will be in touch with definitive pricing.

Australian NCC standard for external stairs: 150–190 mm rise per tread  Â·  Tread going (depth): 240–290 mm

Your staircase summary

Please review your measurements before continuing to the product configurator.

—
treads recommended
Total rise (bottom to top) —
Rise per tread —
Depth of tread (going) —
Stair width —
Total footprint —
Your stair width exceeds 1,000 mm. This will be sent as an enquiry rather than a direct online purchase. Our team will be in touch with definitive pricing.
